The Stair and Rail package consists of
stair stringers, rails for metal and concrete stairs, ramp rails, wall rails and
level handrail. Stair stringers and sloping handrail can be drawn sloping in
either direction. All handrail is drawn using double lines, piece marked and
shop billed. The handrail can be multi-line rail or picket rail. Dialog boxes
are used for entering stair stringer information allowing you to view and edit
all input before continuing.
Below is a list of
features in the Stair and Rail package.
Key Features
-
Draw to scale and actual bevel.
-
Stair uses dialog box for easy
input.
-
Draw stringer sloping in either
direction.
-
Draw pan and grating stairs.
-

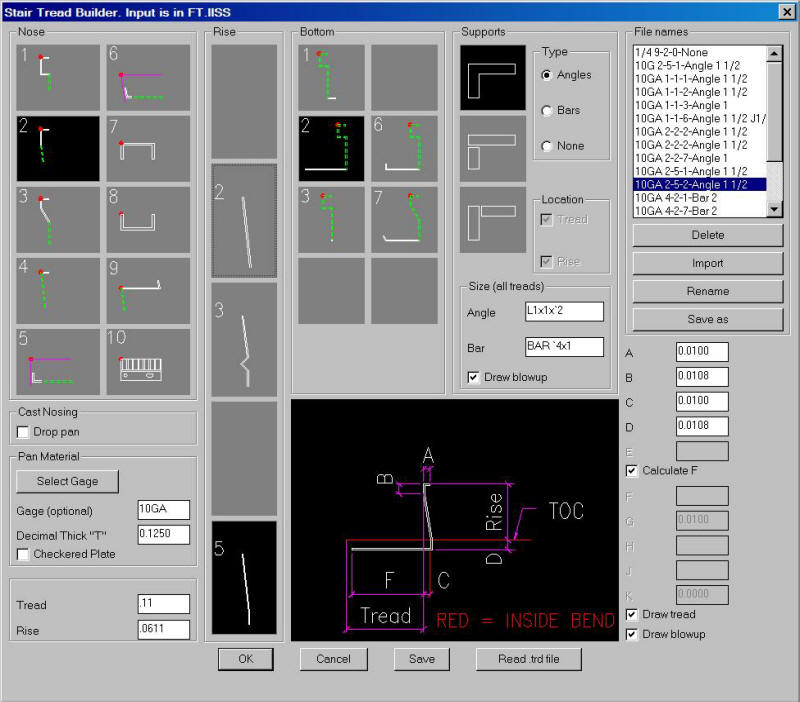

New Tread Builder dialog box
for creating and selecting pans. Last pan used is
the default for next stringer. Many variations can be created and saved for
reuse. Supports for pans can be bars or angles, bent or two separate pieces
and are dimensioned and put in BOM.
An enlarged end
view of the pan can be automatically drawn.
Detail grating treads.
Draw larger scale of pan end
view separately for dimensional detail.
Tail dimensions for all
grating tread holes, all noser points of pan stairs or intersection of bottom
of pan tread and riser can be given to the left end of material or to work
point.
Three top and five bottom
stringer conditions to choose from.
Fifteen different stringer
arrangements possible (Ship ladders too).
Include holes for handrail.
Spacing and tail dimensions are automatically calculated.
Detail multiple line handrail
for stair (Bolted or welded). Stair rails are drawn in double lines. The first
and last post can be off of the stair. Top rail, mid rails and post can be
different sizes and are drawn to scale. You can have pickets between any two
rails and grab rail on
stair rail.
A dialog box is used to input stair rail.
The rails can be detailed using pipe or tube. All materials are automatically
shop billed.
Detail multiple line handrail
for concrete ramps in double lines. Top rail, mid rails and post can be
different sizes and are drawn to scale. You can have pickets between any two
rails on ramp rail. The
rails can be detailed using pipe or tube.
A dialog box is used to input ramp rail.
All materials are automatically shop billed.
Wall rails are drawn in double
lines. All materials are automatically shop billed.
Dialog box used to input wall rail. Enter dimensions to work points or
directly to ends of wall rail.
Draw plan view of stair.
Draw horizontal, (level),
handrails. Drawn using double lines. Top rail, mid rails and post can be
different sizes and are drawn to scale. With or without pickets between any
two rails. With or
without toe plates. The rails can be detailed using pipe or tube. All
materials are automatically shop billed.
Level handrail can be drawn
with toe plate near side or far side.
Level handrail has top view.
Stair rail length can be drawn
to scale.
Ramp rail length can be drawn
to scale.
Main member and all sub pieces
automatically shop billed for you.
Draw elevation view of stair for erection drawings.
Draw elevation view of stair rail for erection drawings.
Detail grating for landing.
Detail pan for landing.
Detail in imperial or metric.
Save CNC data and
extract files compatible with DSTV.
Detail "Panel" for mesh insert.Add Mesh panel insert to handrail.
Detail built-up landing frame.
|
